Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.

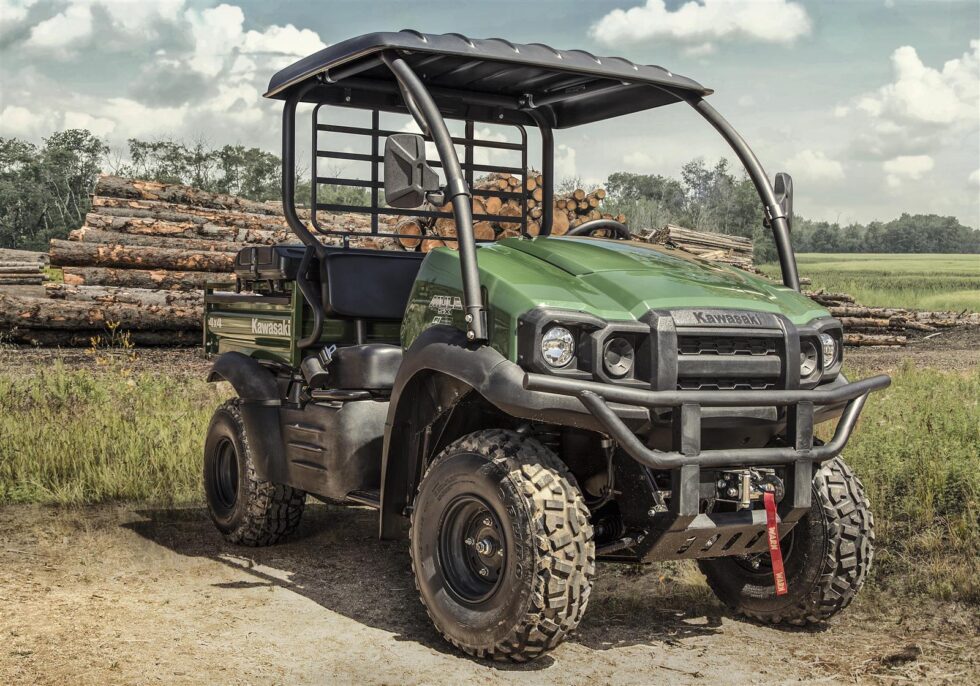

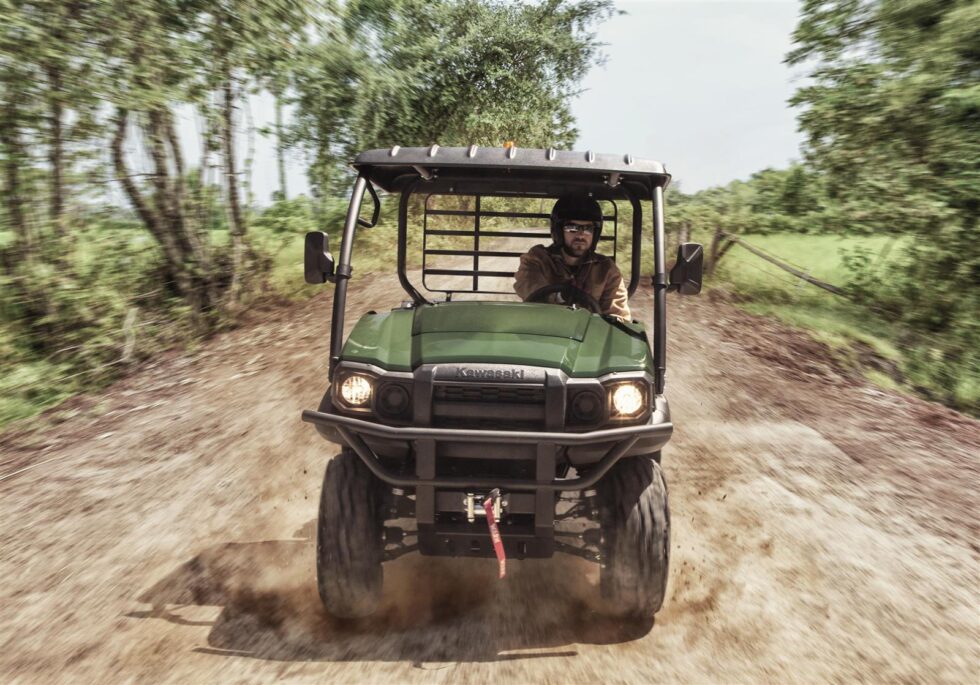

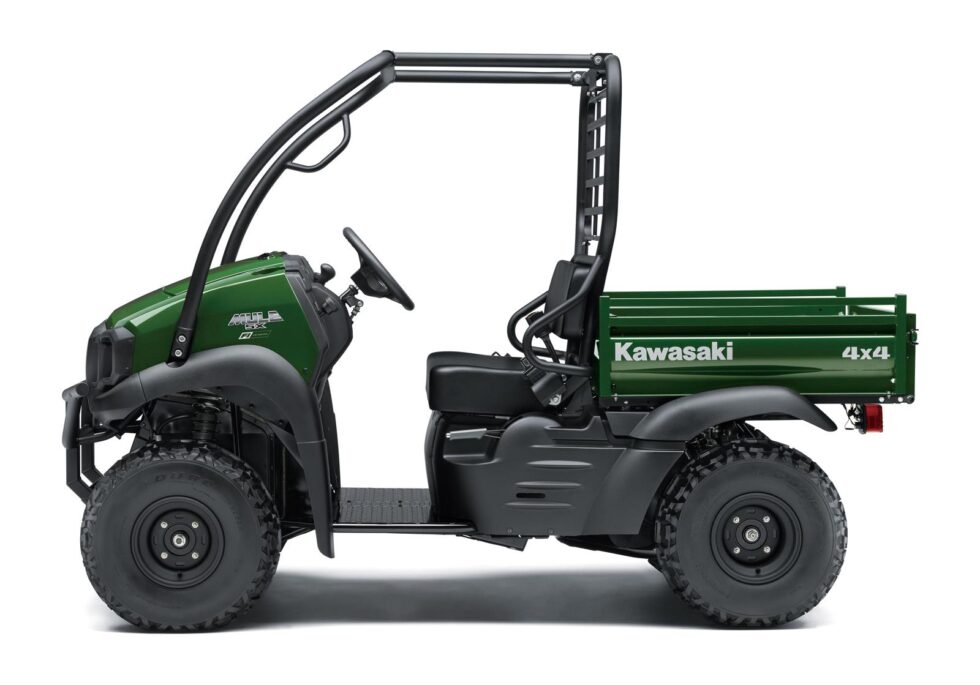

Kawasaki Mule SX 4×4 Petrol Utility Vehicle / UTV/ ATV
Eager to please, the Kawasaki Mule SX 4 X 4 is small, manouverable and manageable yet fully able to tackle the hardest gradients and tasks. Simple selection of high and low ranges – as well as two or four wheel drive – is matched to a dual mode LSD front differential and durable, high quality suspension.
PLEASE CONTACT US FOR BEST PRICE
Available on back-order
£8,054.00 Ex. VAT
Available on back-order
KEY FEATURES
Tough, rugged styling
Increased Comfort
Idealised front and rear suspension settings offer the following benefits:
- increased stability
- improved suspension action, contributing to off-road bump absorption
and ground following, as well as increased ride comfort
- improved handling response, facilitating control
Parking Brake
Pulling the parking brake lever (conveniently located to the left of the
driver’s seat) operates a mechanical internal expansion type brake
for the rear wheels.
Ample Range
16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.
Tilt Steering
Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle
Storage
Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Transmission
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.
Cargo Bed & Towing Capacity
Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
Automotive Dashboard Design
Automotive-style dashboard designed based on that of the PRO Series
models puts all controls within easy reach of the driver.
Simple, Reliable Engine
The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.
Rugged Chassis
Highly durable ladder-type tubular steel frame designed for an ideal
blend of rigidity and ride comfort.
Compact Size
Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.
Additional information
Weight | 461 kg |
---|---|
Is Featured | No |
Specification | ENGINE Engine type:Air cooled, OHV, 4-stroke singleDisplacement:401cm3Bore x stroke:82 x 76 mmCompression ratio:8.6:1Fuel system:Carburettor: Nikki 6C1026Ignition:Magneto & transistor FRAME Wheel travel, front:78mmWheel travel, rear:78,7mmTyre, front:24 x 9-10 (tubeless)Tyre, rear:24 x 11-10 (tubeless) PERFORMANCE Maximum power:9.9kW (13.5 PS)/4,000rpmMaximum torque:29.7N·m (3.0 kgf·m)/2,400rpm TRANSMISSION Transmission:CVT, 2 speed auto. ReverseFinal Drive:Gear (Selectable 2WD/4WD) BRAKES Brakes, front:Dual hydraulic drumsBrakes, rear:Dual hydraulic drums SUSPENSION Suspension, front:Independent, MacPherson strutSuspension, rear:Unit swing DIMENSIONS Dimensions (L x W x H):2,710 x 1,335 x 1,802mmWheelbase:1,779mmGround Clearance:170mmFuel capacity:16 litresCurb Mass:468 kg TECHNICAL SPECIFICATIONS Differential:Dual-Mode differentialTurning radius:3.3mElectrical:12V, 14AhDrive Train:Automatic torque-converter, dual-range, forward, neutral, reverseTrack width, front / rear:1,051/999mmSteering:Manual (rack and pinion)Towing Capacity:500kgCargo bed (L x W x H):1,044 x 900 x 245mmVehicle Load Capacity:420kgCargo Bed Load Capacity:181kgTop speed:40 km/h |
